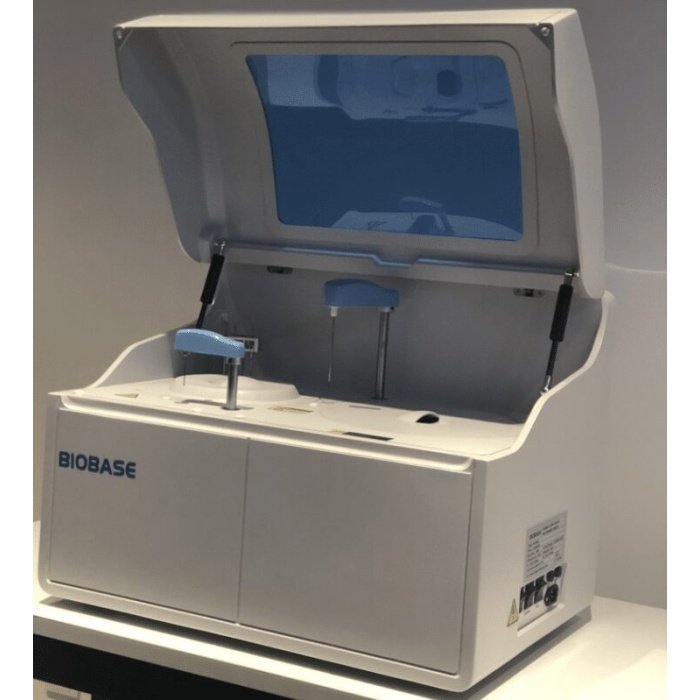

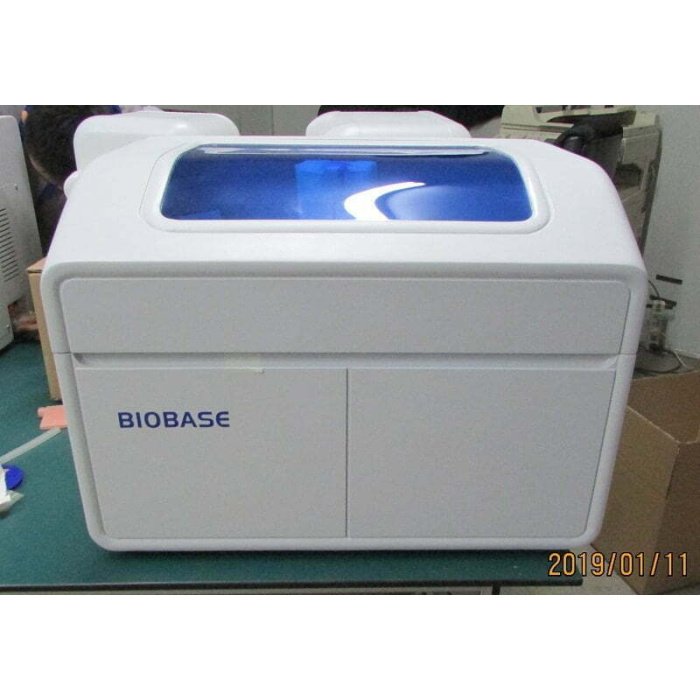

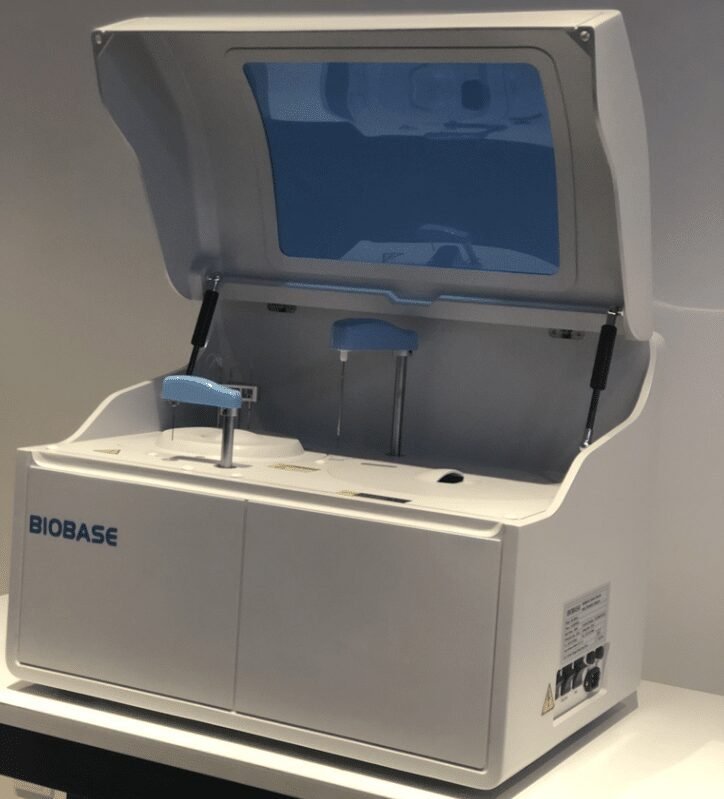

Clinical Blood Chemistry Analyzer

R99,200.00

Laboratory Equipment Biochemistry Analyzer Lab Clinical Blood Chemistry Analyzer

Weight

50 kg

Dimensions

62.5 × 42.5 × 46.0 cm

Got a question? / Not sure of something? Chat an Expert via WhatsApp

Laboratory Equipment Biochemistry Analyzer Lab Clinical Blood Chemistry Analyzer

Lead Time: 4-6 Weeks

Technical Parameter:

Overall Performance	Model	BK-200mini
	Throughput	200 Tests/hour
	Analysis Method	End-point, Fixed-time, Rate(Kinetic)

Sample & Reagent System	Sample Positions	37 sample positions
	Reagent Position	28 reagent positions
	Sample Volume	2~70μL
	Reagent Volume	20~350μL
	Probe	Liquid level sensor function, anti-collision function.
	Probe Washing	Automatic washing interior and exterior
	Reagent Cooling	Refrigerated tray with independent switch
Reaction System	Temperature Control	37+0.1℃, real-time monitoring
	Cuvettes	48 reusable cuvettes,optical length 6mm
	Mixer Probe	Independent stirring
	Washing	Automatic cuvettes washing
	STAT function	YES
Optical System	Light Source	6V/10W halogen lamp
	Spectrophotometry	Post-spectral spectrophotometry
	Wavelength	340,405,450,510,546,578,630,700nm
	Absorbance	0~3.0Abs
Calibration & QC	Calibration	Linear:K factor, 1-point ,2-point and multipoint liner Non-Linear: Spline,Polygon,Index,Ogarithm,Logit-4P, Logit-5P
Calibration & QC	Quality Control	Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management	Software	Windows 7/8/10 , 32or 64bit
	LIS System	Bi-direction,support HL7 protocol
	Interface	LAN port access
	Printer	External,multiple reporting mode available
Working Conditions	Power Supply	AC220V+10%,50/60Hz, 110V+10%,60Hz, 300W
	Temperature	10℃~30℃
	Water Consumption	Deionized water:3L/H
	Humidity	30-80%
Size & Weight	Size (WDH)	625425460mm
	Net Weight	36kg
	Package Size (WDH)	720535740mm
	Gross Weight	50kg

Back to products

Weight	50 kg
Dimensions	62.5 × 42.5 × 46.0 cm

SKU: CP_75955 Categories: Laboratory Equipment, Medical Equipment

Description
Shipping & Delivery

Description

Overall Performance	Model	BK-200mini
	Throughput	200 Tests/hour
	Analysis Method	End-point, Fixed-time, Rate(Kinetic)

Sample & Reagent System	Sample Positions	37 sample positions
	Reagent Position	28 reagent positions
	Sample Volume	2~70μL
	Reagent Volume	20~350μL
	Probe	Liquid level sensor function, anti-collision function.
	Probe Washing	Automatic washing interior and exterior
	Reagent Cooling	Refrigerated tray with independent switch
Reaction System	Temperature Control	37+0.1℃, real-time monitoring
	Cuvettes	48 reusable cuvettes,optical length 6mm
	Mixer Probe	Independent stirring
	Washing	Automatic cuvettes washing
	STAT function	YES
Optical System	Light Source	6V/10W halogen lamp
	Spectrophotometry	Post-spectral spectrophotometry
	Wavelength	340,405,450,510,546,578,630,700nm
	Absorbance	0~3.0Abs
Calibration & QC	Calibration	Linear:K factor, 1-point ,2-point and multipoint liner Non-Linear: Spline,Polygon,Index,Ogarithm,Logit-4P, Logit-5P
Calibration & QC	Quality Control	Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management	Software	Windows 7/8/10 , 32or 64bit
	LIS System	Bi-direction,support HL7 protocol
	Interface	LAN port access
	Printer	External,multiple reporting mode available
Working Conditions	Power Supply	AC220V+10%,50/60Hz, 110V+10%,60Hz, 300W
	Temperature	10℃~30℃
	Water Consumption	Deionized water:3L/H
	Humidity	30-80%
Size & Weight	Size (WDH)	625425460mm
	Net Weight	36kg
	Package Size (WDH)	720535740mm
	Gross Weight	50kg
