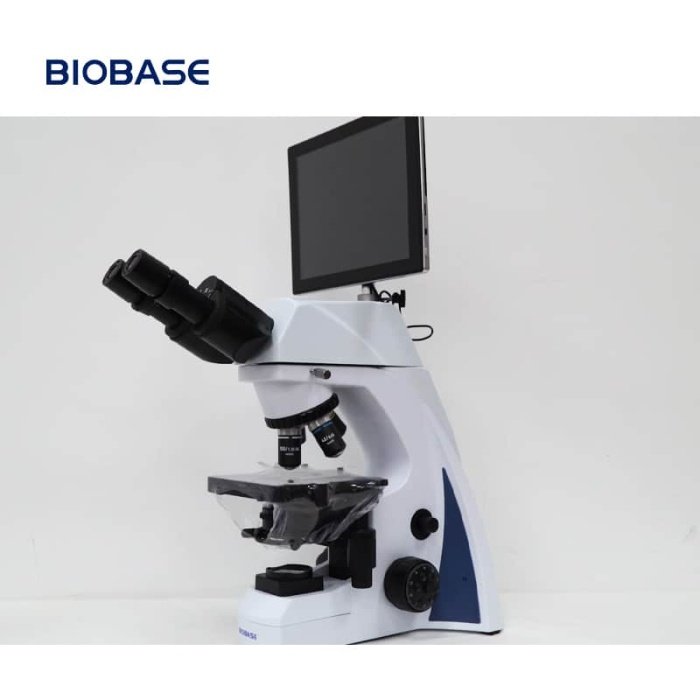

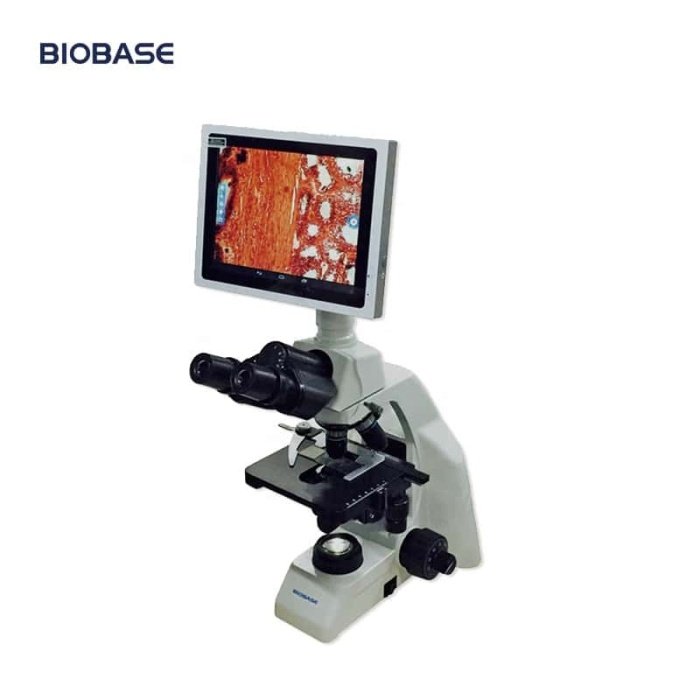

Microscope Digital, Laboratory Electronic Biological Microscope

Technical Parameters

Model		DM-125
Optical System	Finite Optical System	√
Eyepiece	WF10X/18	√
Viewing Head	Monocular Head Inclined at 30°
	Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 48~78mm	√
	Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 48~78mm
	Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi
	Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS
Achromatic Objective	4X N.A=0.1 WD=17	√
	10X N.A=0.25 WD=7	√
	40X N.A=0.65 WD=0.53	√
	100X N.A=1.25 WD=0.13	√
Nosepiece	Backward Quadruple Nosepiece	√
Stage	Double Layers Mechanical Stage 140x140mm, Moving Range 75x50mm	√
Condenser	NA 1.25 Abbe Condenser	√
Condenser	Dark Field Condenser (Dry, Oil)
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Division 25mm	√
Illumination	S-LED Illumination
	S-LED Illumination with Recharger	√
	Kohler Illumination
	ECO Function
	Plane-cancave Mirror
Fluorescent Attachment	Fluorescent Illumination, LED Lamp
Fluorescent Attachment	Fluorescent Illumination, 100W HBO Lamp
Power Supply	AC110/220V±10%,50/60Hz	√
Accessories	Polarization Set
Accessories	Phase Contrast Kit
Optional Accessories	LED/LCD Screen,camera
Gross Weight	8.5kg	√

Weight	9 kg
Dimensions	20 × 20 × 55 cm

SKU: CP_48759 Categories: Laboratory Equipment, Medical Equipment

Description
Shipping & Delivery

Description

Model		DM-125
Optical System	Finite Optical System	√
Eyepiece	WF10X/18	√
Viewing Head	Monocular Head Inclined at 30°
	Seidentopf Binocular Viewing Head Inclined at 30°, Interpupillary 48~78mm	√
	Seidentopf Trinocular Viewing Head Inclined at 30°, Interpupillary 48~78mm
	Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, Support Wifi
	Digital Viewing Head Inclined at 30°, Interpupillary 48-78mm, 5M pixels, 8’’ LCD, Android OS
Achromatic Objective	4X N.A=0.1 WD=17	√
	10X N.A=0.25 WD=7	√
	40X N.A=0.65 WD=0.53	√
	100X N.A=1.25 WD=0.13	√
Nosepiece	Backward Quadruple Nosepiece	√
Stage	Double Layers Mechanical Stage 140x140mm, Moving Range 75x50mm	√
Condenser	NA 1.25 Abbe Condenser	√
Condenser	Dark Field Condenser (Dry, Oil)
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Division 25mm	√
Illumination	S-LED Illumination
	S-LED Illumination with Recharger	√
	Kohler Illumination
	ECO Function
	Plane-cancave Mirror
Fluorescent Attachment	Fluorescent Illumination, LED Lamp
Fluorescent Attachment	Fluorescent Illumination, 100W HBO Lamp
Power Supply	AC110/220V±10%,50/60Hz	√
Accessories	Polarization Set
Accessories	Phase Contrast Kit
Optional Accessories	LED/LCD Screen,camera
Gross Weight	8.5kg	√

Shipping & Delivery

LEAD TIME

Standard Delivery

Standard delivery is between 3 to 5 working days. This may differ from product to product. Lead time is likely to be indicated in the product description or you may phone our office to confirm.
