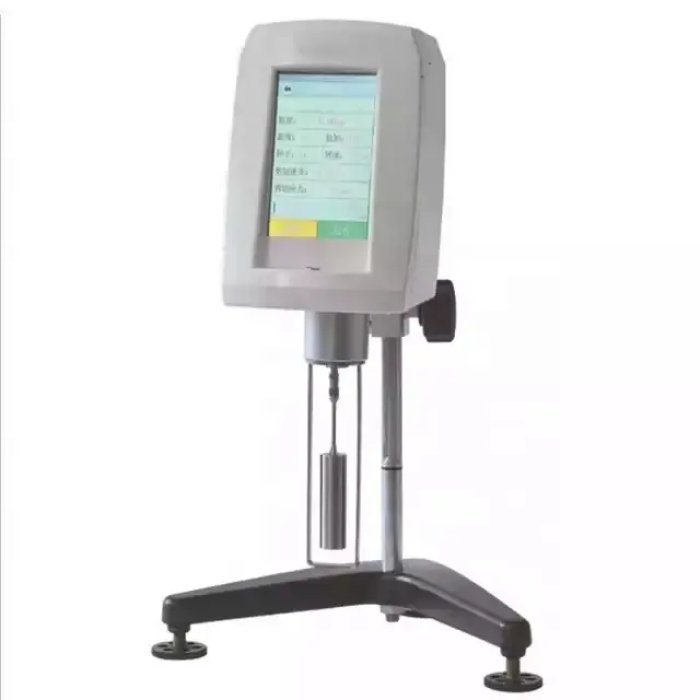

Digital Brookfield Viscometer

Model

SNB-1T                                                                                                                                           SNB-2T

Control/display mode

5 inches color touch screen

speed(r/min)

0.3/0.6/1.5/3/6/12/30/60

0.1/0.3/0.6/1.5/3/6/12/30/60

Measuring rangemPa.s

1~2,000,000

1~6,000,000

(Measuring 10 under low viscosity, equipped with 0 # rotor)

rotor

1, 2, 3, 4#( standard) 0#转子( standard)

Measurement error (Newtonian liquid)

±1%

Repetitive error (Newtonian liquid)

±0. 5%

Timing function

standard

Temperature measurement function

The standard temperature sensor interface temperature sensor (selected)

Automatic scanning function

Automatic scanning and recommend the best combination of rotor and speed

According to maximum measuring range

Combination of rotor and speed automatically according to the selected viscosity range can be measured

Should show shear/shear rate

standard

Automatic display kinematic viscosity

Need to input the density of the sample

Self-built measurement program

Can save up to 30 groups (including the rotor, rotational speed, temperature, time, etc.)

Save the measurement results

Can save up to 30 sets of data (including viscosity, temperature, rotating speed of rotor, and the shear rate, Shear stress, time, density, kinematic viscosity, etc.)

Viscosity curve

Real-time display viscosity curve

print

Data, curve can print (standard equipped with print interface, to choose and buy a printer)

Data output interface

standard

Constant temperature parts

Option (viscometer constant temperature trough, thermostatic cup, etc.)

Working power supply

Wide working voltage (110 v / 60 hz or 220 v / 50 hz)

Overall dimensions

300 × 300 × 450(mm)
