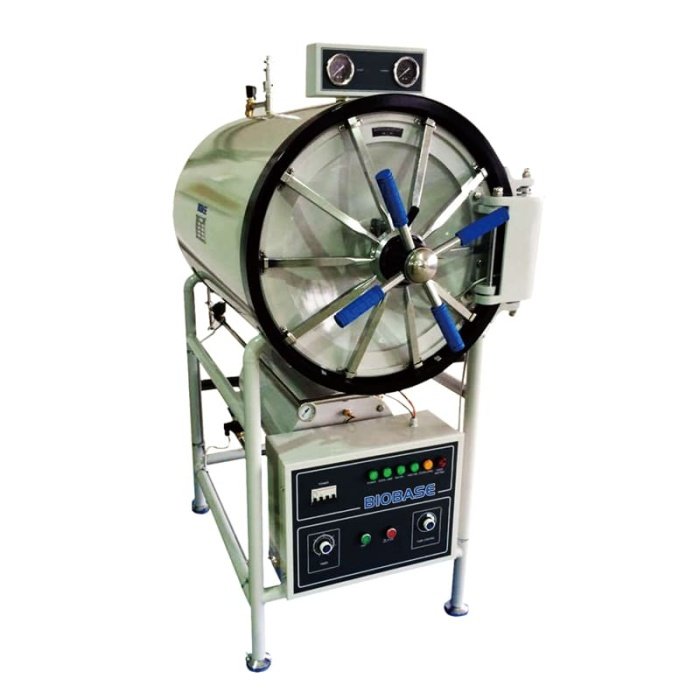

Horizon Cylindrical Pressure Autoclave, 200L
Features of Horizon Cylindrical Pressure Autoclave
1. Drying function
2. Interlock function.
3. Automatic sterilization process
4. 304 stainless steel material chamber.
5. Safety valve for over pressure protection.
6. Over-temperature, over-pressure protection device.
7. Water level sensor. The power will be cut-off automatically in case of low water level.
Technical parameters
Model | BKQ-H200 | ||||
Capacity | 200L | ||||
Chamber size | φ515*1000mm | ||||
Working pressure | 0.22MPa | ||||
Working temp. | 134℃ | ||||
Temperature range | 40~134℃ | ||||
Sterilization time | 0~60 min | ||||
Drying time | 0~60 min | ||||
Temp. accuracy | ≤±2℃ | ||||
Power consumption | 9KW | ||||
Power supply | 220V/380V, 50/60Hz | ||||
External size(mm) | 1400*670*1650 | ||||
Packing size(mm) | 1560*820*1850 | ||||
Gross weight(kg) | 350 | ||||
