Marcy Scale 3kg

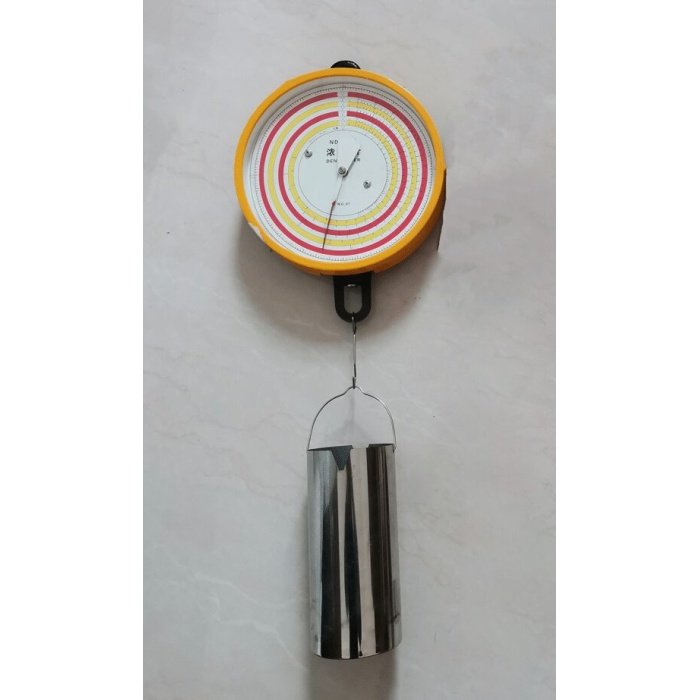

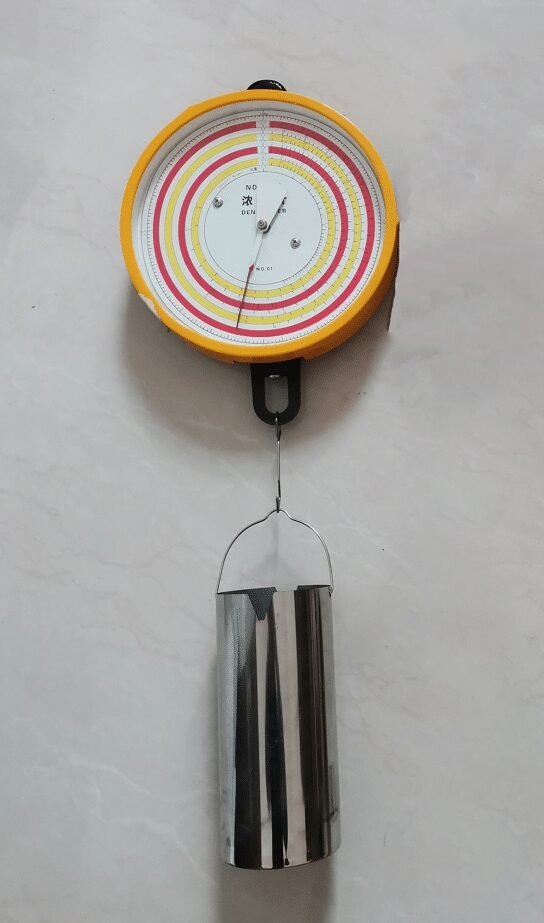

Marcy Pulp Density Scale with Stainless Steel Container: 3kg

Product Introduction

Instruction

Pulp Density Specific Gravity Scale with Stainless Steel Container Pulp density and specific gravity scale for direct reading of metric weight of samples; specific gravity of liquids; specific gravity of pulp; specific gravity of dry solids; and per cent solids. Highly sensitive and accurate scale, easy to operate, direct reading with no need to weigh samples separately, nor refer to charts and tables nor make any calculations. Twelve separate interchangeable dials provide wide range of specific gravity determinations in small increments from 1.2 to 7.8. The transparent dial cover eliminates the possibility of dirt affecting the scale accuracy or its ability to be read. Provided with one clear plastic container.Container have slotted overflow (1000cc)..

Marcy Scale CALIBRATION:

1. Fill the container with exactly 1000cc of clear water.
2. The slotted holes located near the top of each container are designed to initially retain slightly more than 1000 cc.
3. Using a file, carefully enlarge the bottom of the slotted holes until water begins to leak out. The container should now retain exactly 1000 cc.
4. Hang the container full of water on the scale hook.
5. Turn the zero adjustment screw located directly above the scale hook until the scale pointer is vertical, reading 1.000 on the dial outer ring.
6. The Marcy scale is now calibrated.

Features of Pulp Density Specific Gravity Scale

1. Provides direct values for specific gravity, percent solids and weight in kilograms.
2. Simplifies determination of pulp densities and specific gravities of pulps, liquids & dry solids.
3. Eliminates operator and computation errors.
4. Model and Specs of Pulp Density Specific Gravity Scale.
