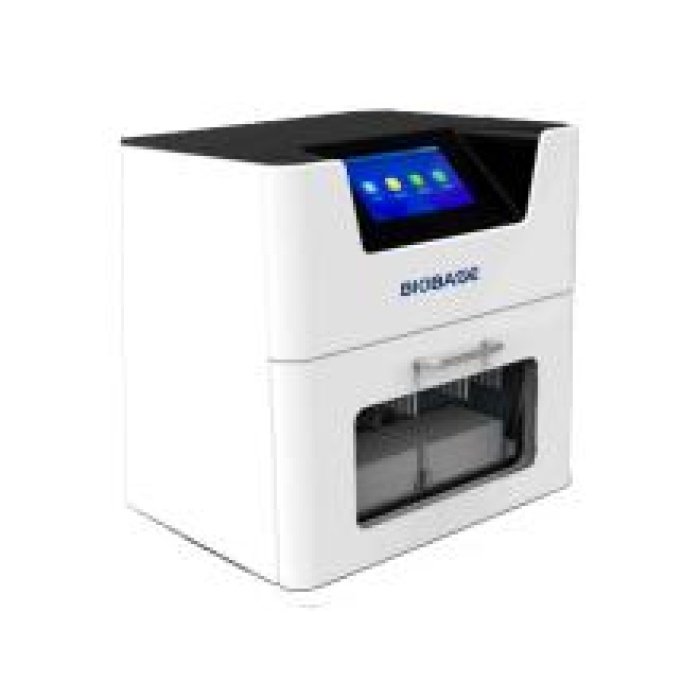

Nucleic Acid Extraction Extractor System
R120,485.00 – R134,400.00
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| size |
BNP32 ,BNP48 |
Got a question? / Not sure of something?
Chat an Expert via WhatsApp
PCR Lab DNA RNA Purification PCR Detection System Nucleic Acid Extraction Extractor System
Lead Time: 4-6 Weeks
Product Description
Nucleic Acid Extraction System
Feature:
1. 7-inch touch screen, easy to use, fast response.
2. User-defined cracking and elution temperature.
3. UV disinfection fuction, time range 1min-24hour.
4. Automatic control system, no need connect to computer.
5. Free programming to meet the needs of different reagent.
6. Open system, fully automatic, stable results and good repeatability.
7. Extract rapidly 15-40 minutes , 32/48 samples can be extracted at the same time.
operation process
Feature
- 7-inch touch screen, easy to use
- Fast response User-defined cracking and elution temperature UV disinfection function
- Time range 1min-24hour Automatic control system
- No need connect to computer Free programming to meet the needs of different reagent Open system
- Fully automatic, stable results and good repeatability Extract rapidly 15-40 minutes
- 32/48 samples can be extracted at the same time
Specification
Model | BNP32 | BNP48 |
Sample Quantity | 32 | 48 |
Processing Volume | 20µL-1000µL | |
Sample Volume | 20-500µL | |
Sample Throughput | 1-32 | |
Magnetic Bead Recovery | >98% | |
Extracting the Difference Between Holes | CV≤3% | |
Heating Temperature | 8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs | |
Oscillating Mixing | Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume | |
Reagent Type | Magnetic bead open platform | |
Extraction Time | 15-40 min/round (depending on the reagent used) | |
Internal Program | Be able to store >100 groups of programs | |
Program Management | Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved | |
Safety Door Design | After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after | |
Built-in Air Duct | No | Yes |
Ultraviolet Irradiation | Yes | |
Packing Size(W*D*H)mm | 580*510*700 | 700*520*750 |
Gross Weight(kg) | 51 | 80 |
Standard Delivery
Standard delivery is between 3 to 5 working days. This may differ from product to product. Lead time is likely to be indicated in the product description or you may phone our office to confirm.
